Product Summary
The ADS1232IPW is a precision 24-bit analog-to-digital converter (ADC). It can provide a complete front-end solution for bridge sensor applications including weigh scales, strain gauges and pressure sensors.
Parametrics
Absolute maximum ratings: (1)AVDD to AGND: –0.3 to +6 V; (2)DVDD to DGND: –0.3 to +6 V; (3)AGND to DGND: –0.3 to +0.3 V; (4)Input Current: 100mA; (5)Input Current: 10mA; (6)Analog Input Voltage to AGND: –0.3 to AVDD + 0.3 V; (7)Digital Input Voltage to DGND: –0.3 to DVDD + 0.3 V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40 to +105℃; (10)Storage Temperature Range: –60 to +150℃.
Features
Features: (1)Complete Front-End for Bridge Sensors; (2)Up to 23.5 Effective Bits; (3)Onboard, Low-Noise PGA; (4)RMS Noise; (5)19.2-Bit Noise-Free Resolution at Gain = 64; (6)Over 100dB Simultaneous 50Hz and 60Hz Rejection; (7)Flexible Clocking: Low-Drift Onboard Oscillator (±3%); Optional External Crystal; (8)Selectable Gains of 1, 2, 64, and 128; (9)Easy Ratiometric Measurements–External Voltage Reference up to 5V; (10)Selectable 10SPS or 80SPS Data Rates; (11)Two-Channel Differential Input with Built-In Temperature Sensor; (12)Simple Serial Digital Interface; (13)Supply Range: 2.7V to 5.3V; (14)–40℃ to +105℃ Temperature Range.

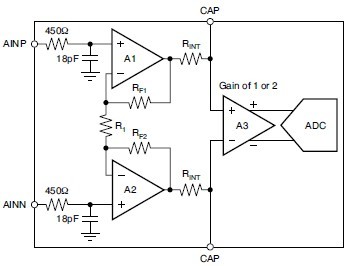

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1232IPW |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||||||
|
ADS1232IPWG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||||||
|
ADS1232IPWRG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||||||
|
ADS1232IPWR |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||||||
