Product Summary

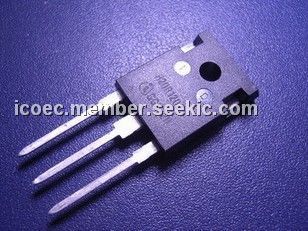

The IHW25N120R2 (H25R1202) is a Reverse Conducting IGBT with monolithic body diode.

Parametrics

Absolute maximum ratings: (1)Collector-emitter voltage:1200 V; (2)Pulsed collector current, tp limited by Tjmax:75A; (3)Turn off safe operating area:75A; (4)Gate-emitter voltage:±20V; (5)Transient Gate-emitter voltage:±25V ; (6)Power dissipation:365W ; (7)Operating junction temperature:-40℃ to +175℃ ; (8)Storage temperature:-55℃ to +175℃ ; (9)Soldering temperature, 1.6mm (0.063 in.) from case for 10s:260℃.

Features

Features: (1)Powerful monolithic Body Diode with very low forward voltage; (2)Body diode clamps negative voltages; (3)NPT technology offers easy parallel switching capability due to positive temperature coefficient in VCE(sat) ; (4)Low EMI ; (5)Qualified according to JEDEC for target applications ; (6)Pb-free lead plating; RoHS compliant.

Diagrams

IHW20N120R
IHW20N120R

Infineon Technologies

IGBT Transistors REVERSE CONDUCT IGBT 1200V 20A

Data Sheet

Negotiable
IHW20N120R2
IHW20N120R2

Infineon Technologies

IGBT Transistors REVERSE CONDUCT IGBT 1200V 20A

Data Sheet

Negotiable
IHW20N120R3
IHW20N120R3

Infineon Technologies

IGBT Transistors IH SeriesRev Conduct IGBT Monolithic Body

Data Sheet

0-1: $1.81
1-10: $1.68
10-100: $1.54
100-250: $1.45
IHW20N135R3
IHW20N135R3


IGBT 1350V 20A 310W TO247-3

Data Sheet

0-240: $2.40
IHW20T120
IHW20T120

Infineon Technologies

IGBT Transistors LOW LOSS DuoPack 1200V 20A

Data Sheet

0-97: $3.70
97-100: $3.03
100-250: $2.74
250-500: $2.45
IHW25N120R2
IHW25N120R2

Infineon Technologies

IGBT Transistors REVERSE CONDUCT IGBT 1200V 25A

Data Sheet

0-1: $3.13
1-10: $2.80
10-100: $2.29
100-250: $2.06
