Product Summary
The FSDM0265RNB (DM0265R) is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components. The device is an integrated high voltage power switching regulator which combines an avalanche rugged Sense FET with a current mode PWM control block. The integrated PWM controller features include: a fixed oscillator with frequency modulation for reduced EMI, Under Voltage Lock Out (UVLO) protection, Leading Edge Blanking (LEB), optimized gate turn-on/turnoff driver, Thermal Shut Down (TSD) protection and temperature compensated precision current sources for loop compensation and fault protection circuitry.
Parametrics
Absolute maximum ratings: (1)Drain Current Pulsed, IDM: 8.0 ADC; (2)Single Pulsed Avalanche Energy, EAS: 68 mJ; (3)Maximum Supply Voltage, VCC,MAX: 20 V; (4)Analog Input Voltage Range, VFB: -0.3 to VSD V; (5)Total Power Dissipation, PD: 1.39 W; (6)Operating Junction Temperature, TJ: +150 ℃; (7)Operating Ambient Temperature, TA: -25 to +85 ℃; (8)Storage Temperature Range, TSTG: -55 to +150 ℃.
Features
Features: (1)Internal Avalanche Rugged Sense FET; (2)Consumes only 0.65W at 240VAC & 0.3W load with Advanced Burst-Mode Operation; (3)Frequency Modulation for low EMI; (4)Precision Fixed Operating Frequency; (5)Internal Start-up Circuit; (6)Pulse by Pulse Current Limiting; (7)Over Voltage Protection; (8)Over Load Protection; (9)Internal Thermal Shutdown Function; (10)Auto-Restart Mode; (11)Under Voltage Lockout; (12)Low Operating Current (3mA); (13)Adjustable Peak Current Limit; (14)Built-in Soft Start.

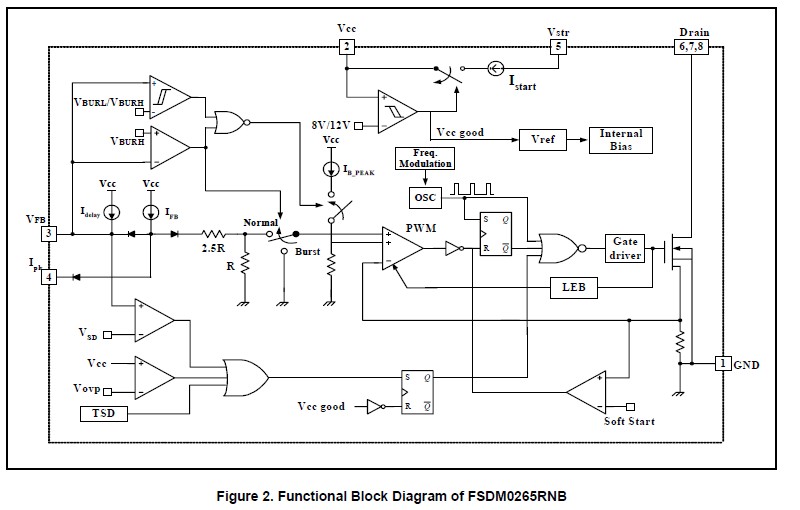

Diagrams
 |
